| Product Name | Waterproof Vehicle GPS Positioning Terminal |
| Product Model | TK003W |
| Product Description | TK003W is a waterproof GSM/GPRS vehicle GPS positioning terminal specially designed for the Internet of Vehicles, integrating GSM wireless communication technology and GPS satellite positioning technology. Featuring an industrial-grade highly integrated design, built-in high-sensitivity GPS module and quad-band GSM communication module, with IP67 waterproof and dustproof design, it can be directly installed in outdoor exposed environments such as motorcycles and electric vehicles. It supports real-time positioning, historical track playback, SOS emergency call, remote fuel/power cut-off, anti-theft alarm and other functions. With a wide voltage input range of 9-90V DC, it is suitable for various vehicles including cars, motorcycles, electric vehicles, trucks and buses. Combined with the global positioning management platform, it enables all-weather real-time monitoring and remote management of vehicles. |
| Application Fields | Motorcycle anti-theft, electric vehicle anti-theft, private car anti-theft, enterprise fleet management, logistics transportation, car rental, financial loan risk control, ride-hailing/taxi management, construction machinery vehicle management, etc. |
Disassembled View (PCB + Cable + Back Cover)
Front View

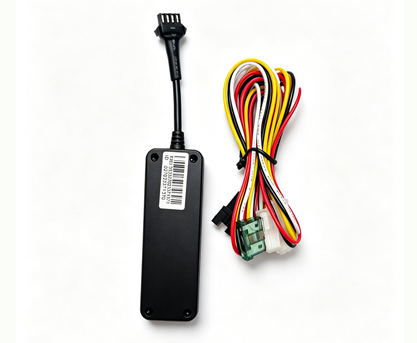

Product Appearance
Installation Accessories
Full Accessories Kit (Box + Cable + Device + Back Cover)
PCB Close-up (IMEI Label + 120mAh Battery)
| No. | Feature |
|---|---|
| 1 | IP67 Waterproof & Dustproof: Designed with waterproof sealing ring, can be directly installed in outdoor exposed environments such as motorcycles and electric vehicles, resistant to rain, dust and water splash. |
| 2 | Real-time Positioning & Tracking: GPS+LBS dual-mode positioning, GPS accuracy 5-10m, LBS base station positioning approx. 200m, all-weather real-time monitoring of vehicle location. |
| 3 | Historical Track Playback: Supports 180-day historical track query and playback, allowing viewing of driving route, speed, stop time, etc. for any time period. |
| 4 | SOS Emergency Call: External SOS button, press and hold for 3 seconds to trigger emergency alarm, platform and mobile APP instantly push alarm notifications. |
| 5 | Remote Fuel/Power Cut-off: Remotely control vehicle fuel circuit/power circuit through platform or mobile APP to achieve remote vehicle flameout, preventing vehicle theft or unauthorized use. |
| 6 | Anti-theft Alarm: Built-in 3-axis G-sensor vibration sensor, automatically alarms when vehicle experiences abnormal vibration or displacement, effectively preventing vehicle theft. |
| 7 | Overspeed Alarm: Set the maximum driving speed, automatically alarms when exceeding the set value, reminding drivers to drive safely. |
| 8 | Power Disconnection Alarm: Automatically alarms when external power is disconnected, and switches to built-in backup battery power supply to ensure continuous device operation. |
| 9 | Low Battery Alarm: Automatically reminds users to check when built-in battery is too low, preventing device from stopping work due to insufficient power. |
| 10 | Geo-fence: Set vehicle activity range on the map (circle/polygon), automatically alarms when vehicle exceeds or enters the fence. |
| 11 | ACC Detection: Real-time detection of vehicle ignition/flameout status, accurately recording vehicle start and stop times. |
| 12 | Blind Area Retransmission: Data in signal blind areas is automatically stored in the device, and automatically retransmitted to the server after signal recovery, ensuring no data loss. |
| 13 | Multi-platform Access: Supports PC web browser, iOS/Android mobile APP, SMS coordinate query, allowing you to grasp vehicle dynamics anytime, anywhere. |
| 14 | Wide Voltage Design: 9-90V DC wide voltage input, compatible with 12V/24V/48V/60V/72V and various vehicle power supplies. |
| 15 | Built-in Backup Battery: 120mAh polymer lithium battery, can operate continuously for 2-3 hours after external power disconnection. |
| 16 | Quad-band GSM: 850/900/1800/1900MHz quad-band global universal, supporting use in most countries and regions worldwide. |
| Item | Specification |
|---|---|
| Communication Band | GSM 850/900/1800/1900MHz (Quad-band Global Universal) |
| GPRS | Class 12, TCP/IP |
| GPS Chip | MTK6261 |
| Positioning Mode | GPS Satellite Positioning + LBS Base Station Positioning (Dual-mode) |
| GPS Positioning Accuracy | 5-10m (Open Environment) |
| LBS Positioning Accuracy | Approx. 200m (Depending on Base Station Density) |
| GPS Frequency | L1, 1575.42MHz C/A Code |
| Tracking Sensitivity | -159dBm |
| Operating Voltage | DC 9V ~ 90V (Wide Voltage) |
| Operating Current | ≈22mA @ 12V DC |
| Quiescent Current | ≈2.5mA @ 12V DC |
| Backup Battery | 120mAh Polymer Lithium Battery (2-3 Hours Battery Life After Power Disconnection) |
| Communication Protocol | GT06 |
| G-sensor | 3-axis Accelerometer |
| Waterproof Rating | IP67 (Waterproof & Dustproof) |
| Dimensions | Approx. 76mm × 26mm × 15mm |
| Weight | Approx. 45g |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Application Scenario | Description |
|---|---|
| Motorcycle Anti-theft | IP67 waterproof design allows direct installation on motorcycle body, real-time location monitoring, automatic alarm for abnormal vibration, quick positioning and tracking to recover stolen vehicles. |
| Electric Vehicle Anti-theft | Wide voltage 9-90V compatible with 48V/60V/72V electric vehicles, waterproof design allows exposed installation, effectively preventing vehicle theft and device dismantling. |
| Private Car Anti-theft | Hidden installation inside the vehicle, real-time monitoring of vehicle location, automatic alarm for abnormal vibration/displacement, quick positioning and tracking to recover stolen vehicles. |
| Enterprise Fleet Management | Unified management of all company vehicles, real-time viewing of vehicle location, driving track, fuel consumption statistics, improving fleet operational efficiency. |
| Logistics Transportation | Full tracking of cargo transportation vehicles, real-time grasp of cargo location and estimated arrival time, improving logistics delivery efficiency. |
| Car Rental | Monitoring rental vehicle location and usage status, preventing vehicles from being fraudulently rented or used without authorization, reducing rental risks. |
| Financial Loan Risk Control | Real-time monitoring of loan vehicles, remote fuel/power cut-off when overdue repayment, reducing bad debt risks for financial institutions. |
| Construction Machinery | Monitoring location and working hours of construction machinery equipment such as excavators and loaders, preventing equipment theft and unauthorized use. |
| Step | Installation Operation |
|---|---|
| 1 | Locate the vehicle's constant power supply (positive +, negative -), ensure wiring operations are performed with the vehicle engine off and power disconnected. |
| 2 | Connect the red wire to the positive power terminal (constant power), and the black wire to the negative power terminal or vehicle ground. |
| 3 | Connect the orange wire to the ACC ignition wire (optional), used to detect vehicle ignition/flameout status. |
| 4 | Connect the white wire to the relay control wire (optional), used to achieve remote fuel/power cut-off function. The relay is connected in series on the vehicle fuel line. |
| 5 | Connect the SOS button to the corresponding interface (optional), install it in a position easily accessible to the driver. |
| 6 | After confirming all wiring is correct, install the device in a suitable location. For motorcycles/electric vehicles, it can be directly fixed on the body (IP67 waterproof); for cars, it can be hidden inside the dashboard or under the seat, with the device facing up, avoiding metal obstruction of GPS signals. |
| 7 | After powering on, wait for the device indicator lights to be normal (GPS light flashing means positioned, GSM light slow flashing means communication normal), the device starts normal operation. |
| 8 | Log in to the positioning management platform or mobile APP, enter the device IMEI number to add the device, and you can start real-time vehicle monitoring. |
