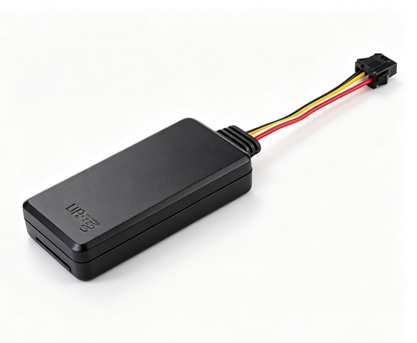

TK018 ▎Product Specifications

4G Full Network · Multi-mode Positioning · Wide Voltage Range · Standard T808 Protocol

Product Features

📍

Real-time Positioning

Multi-mode positioning, simultaneously receives GPS, BDS and LBS signals, supports AGPS for faster and more accurate results

📶

4G Full Network

Supports 4G full network with faster transmission, while avoiding risks caused by 2G network phase-out

📋

Standard T808 Protocol

Compliant with industry standards, supports remote OTA upgrade, quick integration with various customized platforms

⚡

Wide Voltage Range

9-90VDC, widely applicable to cars, trucks, motorcycles, electric vehicles and more

🚨

Multiple Alarms

Abnormal vibration, illegal removal, geofence entry/exit alarms and more

Network Standard	4G TDD-LTE: B34/B38/B39/B40/B41 4G FDD-LTE: B1/B3/B5/B8 VoLTE: Supported
Positioning	Multi-mode intelligent positioning, supports Beidou/GPS/AGPS, supports cellular network positioning
Working Voltage	9-90VDC
Battery	60mAh 3.7V Lithium Polymer Battery
Dimensions	75(L) × 35(W) × 15(H) mm
Standby Current	Low power consumption 1mA
Communication Interface	CAN Bus / R485 / TTL / Bluetooth
Working Temperature	-20℃ ~ 50℃
Communication Protocol	JT/T808 / GT06 / HY

Vehicle Finance Corporate Fleet Logistics & Transport Fleet Management E-bike Makers
