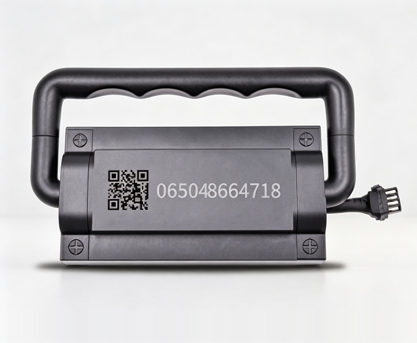

TK017-T ▎Product Specifications

4G Full Network · Multi-mode Positioning · Wide Voltage Range · CAN Custom Expansion

Product Features

📶

4G Full Network

Supports 4G full network with faster transmission, while avoiding risks caused by 2G network phase-out

📋

Standard T808 Protocol

Compliant with industry standards, supports remote OTA upgrade, quick integration with various customized platforms

📍

Real-time Positioning

Multi-mode positioning, simultaneously receives GPS, BDS and LBS signals, supports AGPS for faster and more accurate results

⚡

Wide Voltage Range

9-90VDC, widely applicable to cars, trucks, motorcycles, electric vehicles and more

🔧

CAN Custom Expansion

Supports CAN data interaction and encryption, BMS battery management, professional vehicle terminal makes customization easier

Network Standard	4G TDD-LTE: B34/B38/B39/B40/B41 4G FDD-LTE: B1/B3/B5/B8 VoLTE: Supported
Positioning	Multi-mode intelligent positioning, supports Beidou/GPS/AGPS, supports cellular network positioning
Working Voltage	9-90VDC
Battery	Battery powered
Dimensions	89(L) × 57(W) × 13.5(H) mm
Standby Current	Low power consumption 1mA
Communication Interface	CAN Bus / R485 / TTL
Encryption Chip	Supported
Working Temperature	-20℃ ~ 50℃
Communication Protocol	JT/T808 / GT06 / HY

BMS Battery Monitoring & Management
